Lancaster Products High-Performance Mixing and Pelletizing Machines provide one-step convenience for a wide range of application options.

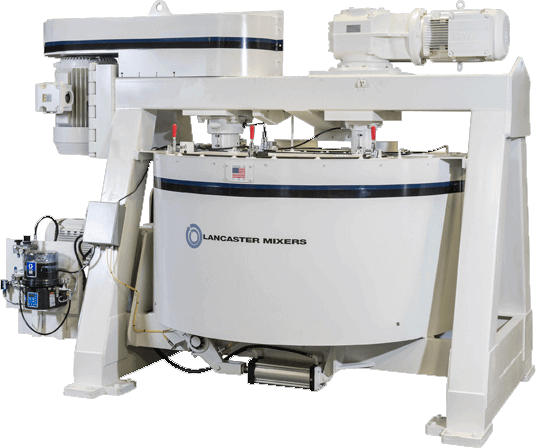

High Shear Mixer
High Shear Mixing Results
Transform your Mixing
We produce the most efficient and effective mixing technology available today: high shear counter-current mixing – yielding higher throughput, more homogenous outputs and the flexibility of a one-step granulation and pelletization machine.
GAME CHANGING MIXING TECHNOLOGY
ONE STEP PELLETIZING/ GRANULATING SYSTEMS
- Increased yields, much higher throughput, and better mixing productivity
- Diverse mixing and pelletizing applications
- Rugged, dependable, and world-class equipment
- Homogenize powdered materials of different densities quicker and more effectively
- Create homogeneous pellets that consistently deliver precise ingredient formulations
- Deliver pellet size range tight tolerances and higher yields than possible with most other machinery
- Alter the pellet size range from batch to batch with no changes to formulation or equipment to create products for different markets
OUR LATEST NEWS AND BLOG
The Effect of Rotor Styles on High Shear Mixing
In addition to the rotating pan, all high shear mixers manufactured by Lancaster Products larger than a K3.5 have two independently motor driven mixing tools inside the pan which are responsible for proper mixing, pelletizing, and granulating of materials: the plow and the high speed rotor. The plow continually sweeps the entire surface of the pan bottom to prevent material from accumulating on the bottom and enhances the overall mixing action. However, the most important tool of all is the high-speed rotor, which rotates counter direction to the pan causing a shearing action inside of the mixing cavity. This high-speed rotor not only agitates the mixture, but significantly influences the control of the entire process. While there are just two main style of standard rotors, we can custom configure the rotor to optimize all mixing processes.
Infographic: Optimize Your Fertilizer Pelletizing Process
Traditional processes for manufacturing fertilizer require many steps and different types of equipment. It is common for systems to include multiple dryers, a mill/pulverizer for size reduction of dried material, pin mixer/pug mill for mixing of additives and raw materials, a pelletizer and multiple conveyors to facilitate the process. If this seems like a complex process that requires high levels of work, energy and maintenance, we agree.
Lancaster Products engineers can optimize existing complex fertilizer pelleting processes or design new streamlined systems to help you realize multiple benefits, including a reduction in physical footprint and an improvement in the characteristics and reproducibility of your pelletized product. By utilizing a Lancaster Products K-Series High Shear Mixer to replace a mill and disc pelletizer, you not only reduce system complexity but also gain the ability to begin processing with raw materials at higher moisture levels. The counter-current mixing action in a Lancaster Mixer allows for one-step mixing and pelletizing with rapid mix times.
Lancaster Products Multi Tool Mixing Advantage
Since the introduction of the original K-series mixer in 1986, Lancaster Products High Shear Mixers have been designed to produce the best mixing and pelletizing results for our customers. Lancaster Mixers superior performance is due to our multi-tool configuration, counter current mixing action and variable tooling speed capability.
Multi Tool Configuration
Lancaster Mixers can be configured with three independent variable speed mixing tools: the mixing rotor, the plow and the rotating pan. These three tools work in concert to provide the best mixing results. The primary mixing tool is the high-speed rotor. The plow and rotating pan both work to move material into the main rotor’s path. The three mixing tools are so efficient at mixing, there are no dead spots inside of the mixing cavity and every piece of material passes through the mixing rotor every few seconds. Additionally, a sidewall scraper is positioned against the pan sides to prevent caking and buildup of material on the pan itself.
Benefits of Owning Lancaster Products’ High Shear Mixers
We are very thankful for all the positive feedback we’ve received over the past 30 years of enhancing materials processing projects for our clients with our high shear mixers. So, we decided to highlight some of the reasons our customers choose to partner with Lancaster Products to optimize their industrial mixing and pelletizing processes.
-
-
- Practical Machine Design
- Easy Maintenance
- Easy Clean Out
- Customization
- Low Total Cost of Ownership
-
Operational Life Expectancy of Lancaster High-Intensive K-Series Mixers
Lancaster Products High Shear Counter-Current Mixers are highly effective in their ability to mix and pelletize in one machine and one process, but Lancaster Mixers are also built to last. Many of our machines are still operating after decades of use. We continue to supply parts to many vintage year machines still in operation.
Lancaster Products machines are built with a robust construction that provides structural durability and are designed to allow for replacement of wear parts as needed to extend the operational life of our machines instead of total machine replacement. To our customers this translates to lower Total Cost of Ownership and higher return on investment than other mixers. With proper maintenance, Lancaster Products mixers are very long-lived machines.

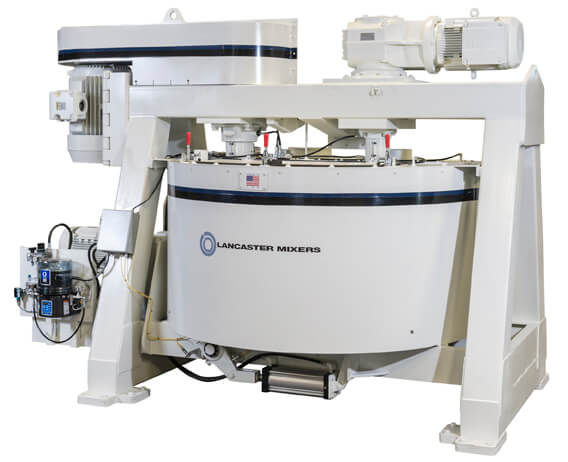

LANCASTER PRODUCTS HIGH SHEAR MIXER FEATURES
Lancaster Products combines decades of mixing experience, working across multiple industries, with the finest granulating and pelletizing mixer technology.
Our line of high shear counter-current mixers can:
- Mix and pelletize in the same operation, supplanting the need for multiple pieces of mixing and pelletizing equipment in a process.
- Rapidly homogenize multiple ingredients with majors in a mix resulting in higher quality products and reduced reaction times.
- Mix and granulate bulk material in a variety of industries including building materials, high performance ceramics, fertilizers, flat panel glass, refractory and recycling of waste materials.
KEY BENEFITS OF OUR TECHNOLOGY
- All in ONE Machines – For blending, Pelletizing, granulating, Slurrying, Dissolving, De-Dusting and Reacting.
- Faster Mixing
- Less Additives
- No Dead Zones
- Continual Material Removal
- Works with a Variety of Materials
- Variable Speeds
We make high-throughput industrial mixing machines for customers in industries as diverse as ceramics, glass, refractories, and proppants. Our engineers and manufacturing team design, build and support our line of high-throughput material processing equipment to your specific requirements.
