Lancaster High Shear Mixers are used extensively in the blending, mixing and granulation of powder metallurgy raw materials.
Our mixers can be used to granulate the raw metal powders to ensure a homogeneous mixture.
ideal tool to granulate powdered materials
The powders can also be granulated in the mixer to provide uniform mixtures and a more uniform flow into the press mold. This translation can be done under atmospheric conditions or even an inert gas blanket when required.
The upper pan seal on the Lancaster Mixer allows the mixing pan to be purged with inert gas. Inert gas leakage is minimized by concentrically machined rings that make up the grease filled labyrinths seal arrangement. This granulation process can improve the overall quality of thru parts pressed and also increase the density of the powder before pressing. This increased density prior to pressing results in a higher density and stronger part after pressing.
ONE MACHINE ONE PROCESS

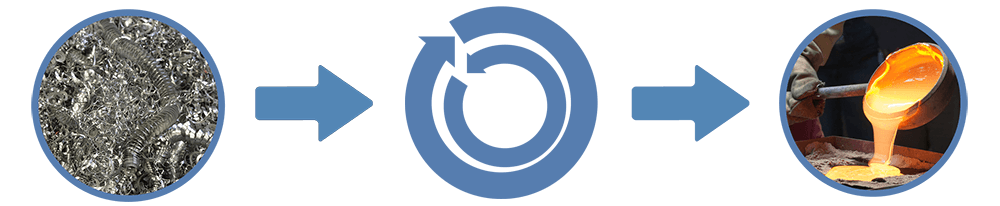

The Lancaster High Shear Mixer can be used to recover the waste streams and dust from a steel mill. These waste streams can include floor sweeping, dust collected from the cupola and other general bag house dust collected throughout the process. These materials can then be combined and blended with a binding agent to allow reintroduction into the melting furnace.
The Lancaster High Shear Mixer can be used to blend and begin the graduation process for the production of iron ore pellets. Blending the iron ore with the bentonite prior to entering the standard balling drum will ensure a more homogeneous mixture, thus resulting in a reduction in the amount of bentonite required to create the iron ore pellets. A reduction in bentonite usage will result in a significant cost saving in the production of green iron ore pellets.
Since the introduction of the original K-series mixer in 1986, Lancaster Products High Shear Mixers have been designed to produce the best mixing and pelletizing results for our customers. Lancaster Mixers superior performance is due to our multi-tool configuration, counter current mixing action and variable tooling speed capability.
Multi Tool Configuration
Lancaster Mixers can be configured with three independent variable speed mixing tools: the mixing rotor, the plow and the rotating pan. These three tools work in concert to provide the best mixing results. The primary mixing tool is the high-speed rotor. The plow and rotating pan both work to move material into the main rotor’s path. The three mixing tools are so efficient at mixing, there are no dead spots inside of the mixing cavity and every piece of material passes through the mixing rotor every few seconds. Additionally, a sidewall scraper is positioned against the pan sides to prevent caking and buildup of material on the pan itself.
We are very thankful for all the positive feedback we’ve received over the past 30 years of enhancing materials processing projects for our clients with our high shear mixers. So, we decided to highlight some of the reasons our customers choose to partner with Lancaster Products to optimize their industrial mixing and pelletizing processes.
- Practical Machine Design
- Easy Maintenance
- Easy Clean Out
- Low Total Cost of Ownership
